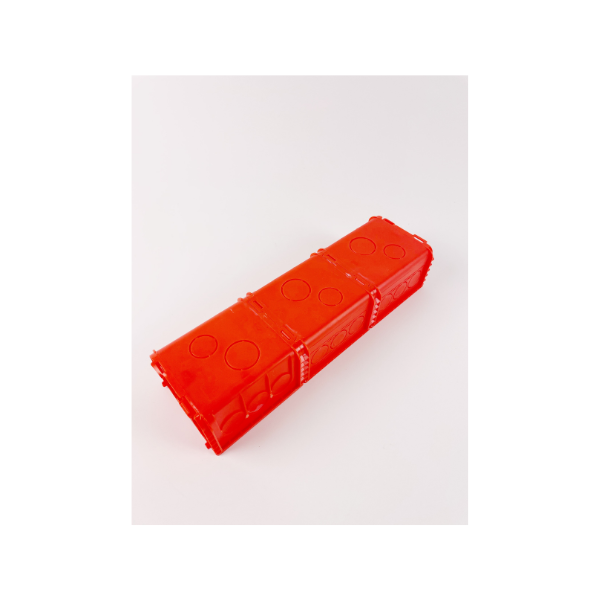

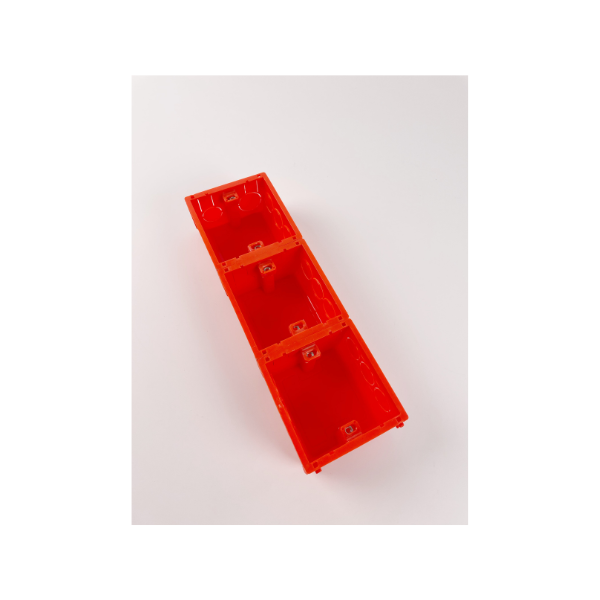

Product: Electrical Plastic Switch Box Injection Mold
Industry Application: Home Appliance Components
Engineered for Excellence:
This precision mold is designed for the high-volume manufacturing of durable electrical switch
boxes used in home appliances. Built to exacting standards, it guarantees consistent part quality
and exceptional longevity.
Key Specifications & Advantages:
1.Mold Standard: HASCO
Ensures global compatibility, simplified maintenance, and readily available components.
2.Premium Mold Steel: 1.2344 (ESR) Hot-Work Tool Steel
Delivers superior wear resistance, excellent polishability, and high thermal stability – critical for prolonged PVC processing.
3.Cavity Configuration: Multi-Cavity
Optimizes production efficiency, maximizing output per cycle for cost-effective manufacturing.
4.Molding Process: Precision Injection Molding
Guarantees dimensional accuracy and high-quality surface finishes on every part.
5.Runner System: Cold Runner
A reliable and cost-efficient solution, ideal for standard PVC processing.
6.Material Compatibility: PVC (Polyvinyl Chloride)
Specifically engineered to withstand the processing demands of PVC, ensuring long mold life.
7.Surface Finish: High-Polish
Produces parts with a smooth, aesthetically pleasing surface finish right out of the mold.
8.Exceptional Durability: 1,000,000+ Shots
Built for demanding production environments, offering outstanding return on investment.
9.Optimized Cycle Time: ~30 Seconds
Enables high production throughput and efficient manufacturing.
10.Press Requirement: 100 Ton Clamping Force
Compatible with standard industrial injection molding machines.
11.Rapid Delivery: Lead Time ~4 Weeks
Get your high-performance mold faster, minimizing project timelines.
Why Choose This Mold?
*Proven Reliability: Engineered for over one million cycles, minimizing downtime and maintenance costs.
*Superior Part Quality: HASCO standards and polished 1.2344 steel ensure consistent,
high-precision switch boxes with excellent surface definition.
*High Efficiency: Multi-cavity design combined with a fast 30-second cycle time maximizes your production capacity.
*PVC Expertise: Material-specific design ensures optimal performance and longevity when molding PVC.
*Fast Turnaround: Benefit from our efficient manufacturing process with an estimated 4-week lead time.
Ideal For: Manufacturers of electrical components, home appliance producers, and suppliers needing
reliable, high-volume production of plastic switch boxes.
Ready to upgrade your switch box production? Contact us today for a detailed quotation or to discuss
custom mold solutions.
