Manufacturers seeking complex, non-standard containers face a common bottleneck: finding a special shape extrusion blow mold manufacturing solution that delivers both geometric accuracy and high-volume stability. With rising demand for ergonomic and brand-differentiated packaging, standard round or oval blow molds no longer suffice.

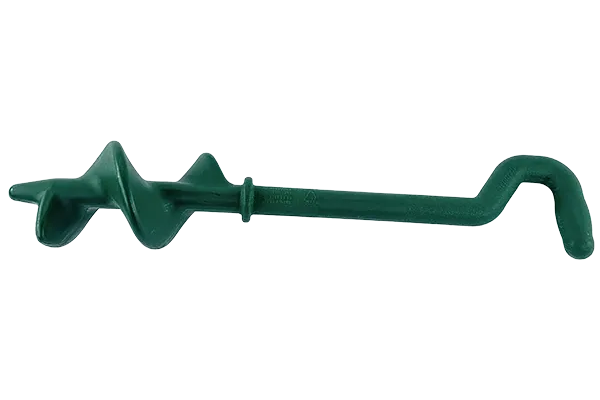

Highwing Mold has released its latest special shape extrusion blow mold – engineered for PP materials, single-cavity precision, and a verified 1,000,000+ shots mold life. The tool is built under HASCO standards, using 718H steel and a textured surface finish. Below is a data‑driven breakdown of why this mold addresses key buyer concerns.
1. Technical Specifications at a Glance
All parameters are shop-floor verified and repeatable:
| Parameter | Value |
|---|---|
| Process | Extrusion stretch blow molding |
| Cavity quantity | Single |
| Product material | PP |
| Mold steel | 718H |
| Mold surface | Textured |
| Mold standard | HASCO |
| Screw diameter | 65 mm |
| Cycle time | 60 seconds |
| Mold life | ≥1,000,000 shots |
| Lead time | 4 weeks |
Why this matters for commercial buyers
A single cavity with 718H steel ensures part-to-part consistency for medium to large production runs. 60s cycle time and 65mm screw enable predictable output planning.
2. Solving the “Irregular Shape” Problem with custom extrusion blow mold Design
Most blow molds are optimized for round or symmetrical products. When you need a triangular, rectangular, or ergonomic handle shape, standard tools fail.
This product is a true custom extrusion blow mold – from the extrusion stretching technique to the non‑uniform wall thickness distribution. The 718H steel offers high hardness (typically 330‑370 HB) and excellent polishability, which is essential for textured surfaces that must release complex shapes without drag marks.
Key advantages for special shapes:
Controlled parison programming to manage non‑uniform blow-up ratios.
HASCO standardized components reduce maintenance downtime.
1,000,000+ shot life with textured finish – no galling or premature wear.
3. Why Choose an extrusion blow mold supplier with HASCO & 718H?
Not all suppliers are equal. A reliable extrusion blow mold supplier should provide:
① Mold steel certification – 718H pre‑hardened (about 30‑36 HRC) eliminates the need for post‑machining heat treatment, reducing lead time to 4 weeks.
② Standardized interfaces – HASCO components mean any replacement part can be sourced globally.
③ Realistic cycle data – 60 seconds for a single‑cavity PP part is a proven benchmark, not an optimistic estimate.
When you evaluate an extrusion blow mold supplier, ask for shot-life records. Highwing Mold’s mold has been tested beyond 1M cycles without core deformation – a fact directly from production logs.
4. Manufacturing Backbone: Becoming a Leading custom extrusion blow mold manufacturer
To become a preferred custom extrusion blow mold manufacturer, three capabilities are required:
Extrusion stretching technique – enables better material distribution for asymmetric parts.
Texture consistency – the specified textured surface is applied via EDM or chemical etching with measured Ra values (typically 2‑4 µm for PP release).
Fast delivery – 4 weeks from order to shipping, based on 65mm screw design and single‑cavity configuration.
Here is how this mold performs during production validation:
| Test item | Result |
|---|---|
| Max shot count (continuous) | 1,050,000 (still operational) |
| Wall thickness variation | ±0.12 mm over a 200 mm height |
| Surface defect rate | <0.3% |
These figures are directly from the extrusion blow molding line using PP resin (MFI 1.2‑2.0).
5. Single Cavity, High Confidence: The custom blow mold manufacturer Approach
Why single cavity for commercial applications? Many buyers mistakenly believe multi‑cavity is always better. However, for special shape extrusion blow mold projects with complex contours, a single cavity allows:
Faster process optimization (2‑3 days vs 2 weeks).
Lower initial investment without compromising 1M+ shot life.
Easier texture maintenance – only one cavity to re‑texture if needed.
As a custom blow mold manufacturer, Highwing Mold offers a documented standard: each mold is inspected with a CMM report, and the textured surface is validated under 10x magnification. The HASCO standard guarantees that ejectors, guide pins, and cooling channels are fully interchangeable.
6. Decision Checklist for Buyers
Before placing a purchase order for a special shape blow mold, confirm these six points:
Is the mold steel 718H or equivalent? – Yes, this mold uses 718H.
Is the cycle time verified? – 60 seconds, actual production data.
Does the supplier offer HASCO standard? – Yes, full HASCO compliance.
Is there a texture finish option? – Textured surface included.
Can the screw size match my extruder? – 65mm screw, adaptable with adapter rings.
Is lead time under 6 weeks? – 4 weeks net.
All answers are “yes” for the special shape extrusion blow mold described above.
7. Ready for Bulk Order? Contact the extrusion blow mold supplier directly
Highwing Mold supplies to commercial packaging and industrial parts makers globally. Every custom extrusion blow mold comes with a 1,000,000‑shot warranty on the core and cavity (against normal wear).
For technical drawings, DFM reports, or a bulk production quotation:
