Precision Injection Mold for Boat Motor Water Distribution Housing - Marine-Grade Manufacturing Solution
Technical Specifications:

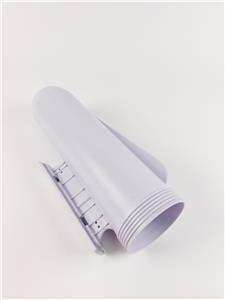

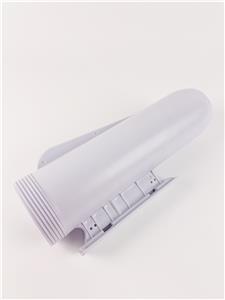

Product Name: Boat Motor Water Distribution Housing Injection Mold
Application Field: Marine/Shipbuilding Components
Mold Standard: HASCO (European premium standard)
Core/Cavity Steel: S136H Stainless (HRC 52-54)
Cavity Quantity: 4+4 family multi-cavity design
Runner System: Balanced cold runner with submarine gates
Product Material: ABS (Marine-grade, UV-stabilized)
Surface Finish: SPI-A1 high polish (Ra 0.012μm)
Mold Life: 1,000,000+ shots (with proper maintenance)
Cycle Time: 30 seconds (including auto degating)
Machine Tonnage: 200-ton hydraulic press
Lead Time: 4 weeks (from DFM approval)
Enhanced Manufacturing Capabilities:
1.Marine-Specific Design Features
Saltwater corrosion-resistant components
Integrated cooling channels for uniform thermal management
Self-lubricating guide pillars for marine environments
Certified for IP67 waterproof standards
2.Quality Assurance Protocol
Coordinate measuring machine (CMM) inspection
Pressure decay testing for housing integrity
100% dimensional verification first article inspection
Material certification (SGS/ROHS compliant)
3.Value-Added Engineering Services
Computational fluid dynamics (CFD) analysis available
Mold flow simulation reports provided
Design-for-manufacturing (DFM) consultation
Rapid prototype validation (3D printed samples)
Why This Mold Excels for Marine Applications:
Precision-engineered for consistent wall thickness (±0.05mm)
Optimized gate locations prevent material degradation
Interchangeable inserts allow future design modifications
Special venting system eliminates burn marks
Production Workflow:
Material drying (4hrs @80°C)
Automatic color mixing (optional)
Robotic part extraction
Vision system quality check
Ultrasonic welding ready features
Technical Support:
24-month warranty on mold workmanship
Emergency spare parts service
On-site maintenance training
Annual mold inspection program
Contact: Norah Huang | Senior Project Engineer
Email: norah@highwingmold.com
Request Quote:
Include 2D/3D drawings (STEP/IGES format)
Specify annual volume requirements
Indicate special certification needs (UL, CE, etc.)
Note any secondary operations required
This mold solution is ideal for manufacturers of:
Outboard motor systems
Marine cooling systems
Water jet propulsion units
Ship auxiliary equipment
specializes in high-performance injection molds for critical marine components, combining German engineering standards with competitive Chinese manufacturing.
