Premium Double-Shot Plastic Injection Mold for Precision Electronics

Premium Double-Shot Plastic Injection Mold for Precision Electronics

Engineered for High-Volume, Multi-Material Components

Product:

Double-Shot Plastic Injection Mold

Industry Application:

 Electronics & Consumer Electronics

Key Specifications:

• Mold Standard: HASCO (European Premium Standard)

• Core Steel: 718H Tool Steel (High Hardness, Superior Wear & Corrosion Resistance)

• Cavity Configuration: Single Cavity (Ideal for Complex or Large Components)

• Gating System: Precision Cold Runner (Cost-Efficient Material Handling)

• Material Compatibility: ABS (Acrylonitrile Butadiene Styrene)

• Surface Finish: High-Gloss Polished (Aesthetic-Ready for Consumer Electronics)

Performance Excellence:

• Mold Lifespan: 1,000,000+ Shots (Guaranteed High-Volume Durability)

• Cycle Time: 40 Seconds (Optimized for Rapid Production)

• Press Requirement: 160-Ton Injection Molding Machine

Advantages for Electronics Manufacturing:

1. Dual-Material Capability: Seamlessly integrates rigid/flexible or colored substrates in one cycle.

2. Zero Secondary Processing: Eliminates post-molding assembly for multi-material parts.

3. HASCO Compliance: Global standardization ensures easy maintenance and component replacement.

4. Precision Surface Quality: Polished finish meets cosmetic demands of consumer electronics.

Production Efficiency:

• Lead Time: 4 Weeks (Expedited Tooling Delivery)

• Validation Support: DFM (Design for Manufacturability) analysis included.

Ideal For:

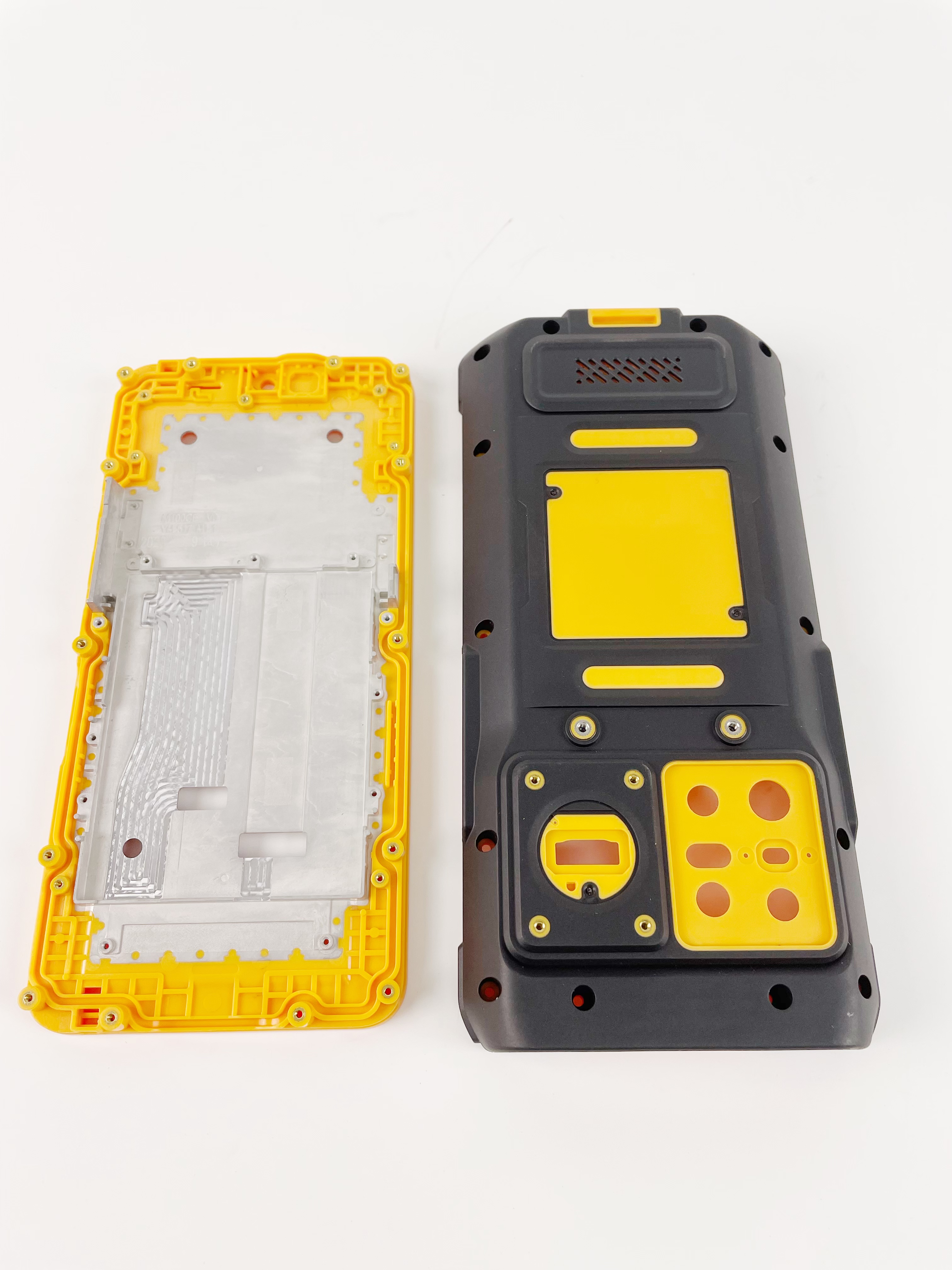

Encapsulated connectors, ergonomic housings, multi-tone buttons, and integrated seals requiring material flexibility or color contrasts.
