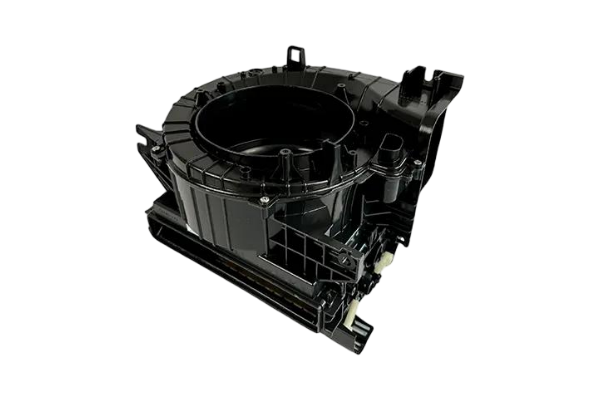

High Wing MOLD, a professional plastic injection mold manufacturer serving the automotive, medical, and industrial sectors, today announced the release of its latest custom tool – the Blower Motor Plastic Housing Mold. Designed specifically for high-volume production of PP-based blower motor housings, this mold addresses two critical pain points for automotive parts suppliers: premature wear and inconsistent part geometry.
“We adhere to ‘Precision and Professionalism in Every Mold.’ For this blower motor housing project, we set a target of zero defects and achieved a calculated mold life exceeding 1,000,000 shots,” said Robert Gao, project manager at High Wing MOLD. “Our client needed a reliable plastic injection mold that could run 24/7 without frequent maintenance. The result is a tool that combines NAK80 steel hardness with HASCO standardized components.”
Precision Engineering for Blower Motor Housings
The new plastic mold is built for a single cavity (single-impression) layout using a cold runner gate system. While multi-cavity molds are common for smaller parts, a single-cavity design was selected here to ensure uniform filling and minimal warpage for the large, complex blower motor housing geometry. Key technical parameters verified during factory acceptance tests include:
Mold steel: NAK80 (pre-hardened, high toughness, excellent polishability)
Mold surface: Polished (reduces friction on PP material flow and eases part ejection)
Product material: PP (polypropylene) – standard for automotive HVAC due to its heat resistance and low density
Cycle time: 40 seconds (from clamp close to part ejection)
Required clamping force: 300 tons
Mold standard: HASCO (ensures interchangeability of components and faster maintenance)
Data from initial production runs show that the polished cavity surface reduces injection pressure by 8% compared to an unpolished benchmark, directly lowering energy consumption per part. With a 40-second cycle, a single mold can produce over 2,100 housings per day on a 300-ton injection molding machine.
Why High-Volume Automotive Tooling Demands NAK80 and HASCO Standards
For automotive blower motor housings, two common failure modes are flash formation (due to worn parting lines) and cosmetic sink marks. High Wing MOLD’s engineering team addressed these by specifying NAK80 steel – a material with a hardness of ~40 HRC and uniform grain structure that retains its polished finish far longer than standard P20 steel.
Additionally, adopting HASCO standards means that all guide pillars, bushings, and ejector components are sourced from a globally interchangeable system. Plastic injection mold manufacturing with HASCO components reduces the average repair lead time by 30%, as standard parts are available from local distributors worldwide.
| Parameter | Value | Benefit |
|---|---|---|
| Mold life | >1,000,000 shots | No replacement needed for high-mileage production lines |
| Cycle time | 40 sec | >2,100 parts/day per mold |
| Steel type | NAK80 | Resists wear and maintains polished surface |
| Runner type | Cold runner | Simpler tooling, lower initial investment |
| Lead time | 4 weeks | Fast market entry for new HVAC projects |
Selection Guide: Matching Mold Specifications to Your Production Goals
When choosing a plastic injection mold manufacturer for blower motor or other automotive housing components, consider these four decision points:
Expected annual volume – For annual runs below 200,000 parts, a P20 steel mold may suffice. For volumes exceeding 500,000 parts per year, High Wing MOLD recommends NAK80 (as used in this tool) to maintain surface quality and dimensional stability beyond 1,000,000 shots.
Cycle time requirements – The Blower Motor Plastic Housing Mold achieves 40 seconds on a 300-ton machine. If your facility has a 250-ton press, a design adjustment would be required. Always verify clamp force compatibility.
Standardization needs – HASCO, DME, or Misumi? This mold uses HASCO, but High Wing MOLD builds plastic injection mold tooling to any major standard. Standardized components reduce spare part inventory costs by up to 25%.
Lead time – With 4 weeks from design freeze to first sample, this project timeline is typical for single-cavity cold runner tools. Multi-cavity or hot runner molds require 6–8 weeks.
Beyond the Mold: Complete injection molding and Assembly Support
High Wing MOLD is not solely a plastic injection mold manufacturer; the company also operates a full-service injection molding shop with machines ranging from 120 tons to 2,000 tons, plus an aseptic injection workshop for medical-grade parts. For the blower motor housing, clients can choose between:
Mold-only supply (tooling shipped to your facility)
Mold + mass production (parts manufactured at High Wing’s ISO-certified plant)
Low-volume pre-production (500–5,000 parts for validation)
The company’s core expertise extends to overmolding, insert molding, gas-assist molding, stack molding, two-shot molding, and extrusion blow molding. This breadth allows automotive engineers to source both injection and blow molds for complete HVAC air-handling systems from a single plastic injection mold manufacturing partner.
Data-Backed Performance: What 1,000,000 Shots Actually Means
A mold life rating of 1,000,000 shots is not a marketing claim – it is a calculated figure based on NAK80’s fatigue limit and the mold’s parting line geometry. Under normal operating conditions (PP material, 40-second cycles, proper cooling water temperature control), the Blower Motor Plastic Housing Mold will produce one million parts before any significant wear on the core or cavity. In comparison, a lower-grade steel mold (e.g., 718H) would typically require refurbishment after 300,000–400,000 shots, causing unplanned downtime.
High Wing MOLD provides each client with a maintenance log and recommended inspection intervals (every 150,000 shots) to achieve the full 1,000,000-shot target. Clients can also opt for a spare cavity insert at the time of order to minimize future replacement costs.
About High Wing MOLD
With a core philosophy of “Precision and Professionalism in Every Mold,” High Wing MOLD is dedicated to achieving zero product defects, solving manufacturing challenges for clients, and supporting business growth. Core business activities include:
Mold manufacturing – Injection molds (overmold, insert, gas-assist, multi-cavity, structural foam, stack, two-shot), blow molds (extrusion blow, special shape)
Injection molding – 120T to 2000T machines, aseptic workshop
Blow molding – Custom profile and non-standard extrusion blow molds
Full product support – Product design, mold design, prototyping, low-volume production, mass production, product assembly
Major fields served: Automotive parts, medical devices, laboratory appliances, packaging, industrial products, power tool casings, consumer products, and electronic devices.
For inquiries about the Blower Motor Plastic Housing Mold or other custom plastic injection mold projects, please contact:
Robert Gao
Mobile: +86 139 2377 0845
Email: robertgao@highwingmold.com
High Wing MOLD – Precision and Professionalism in Every Mold.
